990 Series

ESSP-990 Asphalt Sealcoating Machine and Applicator

Skid or Truck Body

ESSP-990

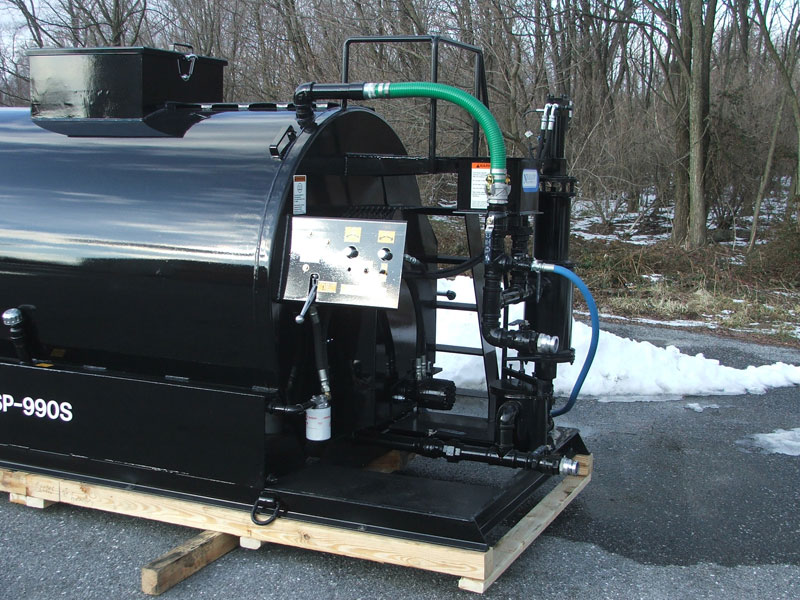

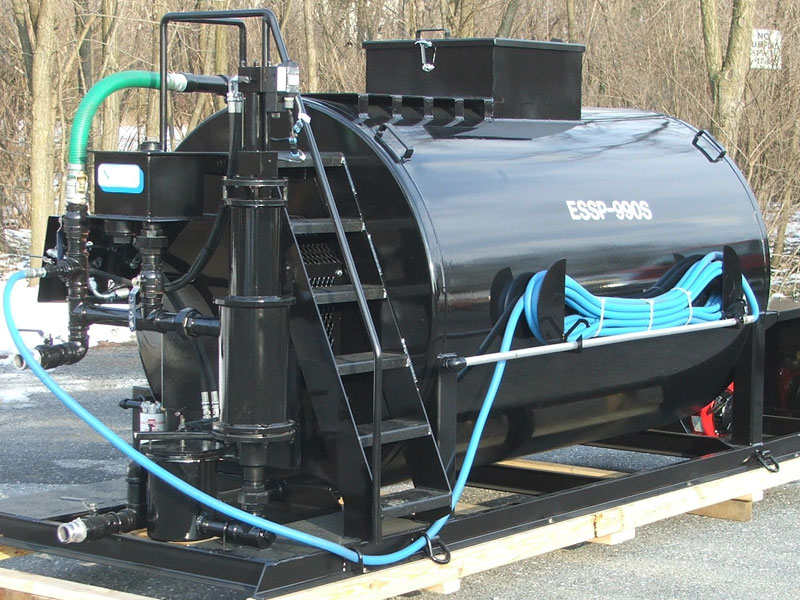

The ESSP-990 skid system has many available configurations to suit your needs. The standard model has the engine/pump in the front (as shown). Or you can opt for a custom model with the engine in the rear making the unit shorter for a smaller bed. The ladder and catwalk were designed for safety and accessibility.

These units are also available with a Truck Body Package customized to the exact specifications of your truck chassis. If you can dream it, we can build it.

As an option, agitator paddles can be equipped with 38-inch Neoprene squeegees for maximum material mixing and removal. The control panel can be located at a lower position for ground access when tank is mounted on a truck.

The "Power Plant" for the ESSP-990 is the 16 HP Briggs & Stratton® V-Twin OHV. A Honda® engine can be substituted. All come with electric key start.

The standard model has the engine in the rear under the dash panel. An engine-in-front (EIF) model is available with the engine compartment in front of the tank just like a trailer model.

 Read More
  • Dimensions (L × W × H)

    158 inch × 58 inch × 70 inch
  • Weight

    3,500 lbs.
  • Engine

    16 HP gas twin cylinder Briggs & Stratton® Vanguard™ engine with electric start. Includes 2-year warranty.
  • Tank & Capacity

    990-gallon steel tank with 24-inch manway. Inner lid and safety hatch. Easy access stairway and catwalk.
  • Pumping System

    ESSP (100 gpm) piston pump with 2-inch material plumbing, 2-inch gravity flow discharge and quick connects. Pump speed is variable. "Easy Clean" surge tank and large 2-gallon material filter.
  • Agitation

    3-inch shaft diameter. Variable speed control with forward and reverse. Offset paddles hydraulically driven for superior torque capabilities.
  • Hose & Hand Wand

    75-foot hose and 6-foot wand.
  • Cleanup System

    Water system with electric pump.
  • Custom Options

    • 2nd hose and hand wand
    • Longer hose for hand wand (100 feet, 125 feet, 150 feet)
    • Operator seat
    • 84-inch 6-nozzle spray bar
    • Spray bar extensions
    • Hose reel (spring loaded/self-retracting)
    • 15-foot suction hose
    • 8-foot wide squeegee drag assembly
    • Squeegees on agitator paddles
    • Control panel location

Sealcoat Machine

Operation, Maintenance and Parts (OMP) for Nealco™ ESSP-990, ESSP-1500 and ESSP-2000 Sealcoat Skid Systems

Piston Pump

ESP 50 GPM Piston Pump Parts List & Assembly/Disassembly Instructions ESSP 100 GPM Piston Pump Parts List & Assembly/Disassembly Instructions ESP & ESSP Piston Pump Head Proximity Switch Installation

Engine

Manufactured by Briggs & Stratton® Corporation Engine Models 290000, 300000, 350000, 380000 Series.
