760 Series

HTL-760 Light Duty Hot Tack System

Trailer or Skid

HTL-760T

The Light Duty version of the Nealco® Hot Tack Applicator boasts SIMPLICITY in design and operation. Just light the torch and adjust the gas pressure to heat up the material. You can be ready in as little as 40 minutes! Dual bypass valves allow circulation through the piping system to keep the material hot and avoid clogging. A 3-inch stainless steel thermometer shows at-a-glance when it's ready for spraying. The return funnel and cradle keep the hose and wand circulating, so when you go back to spraying, your material is at temperature and the tip is not clogged. When you're done for the day, simply flush the pipes by opening the solvent tank valve and spray into the waste tank for disposal.

Sorry, no videos yet.

  • Dimensions (L × W × H)

    210 inch × 73 inch × 87 inch
  • Weight

    3,050 lbs.
  • Engine

    8 HP Briggs & Stratton® 950 Series with 2-to-1 gear reduction
  • Tank & Capacity

    760-gallon steel tank with flanged heads, 10-inch sealed manway, vented
  • Pumping System

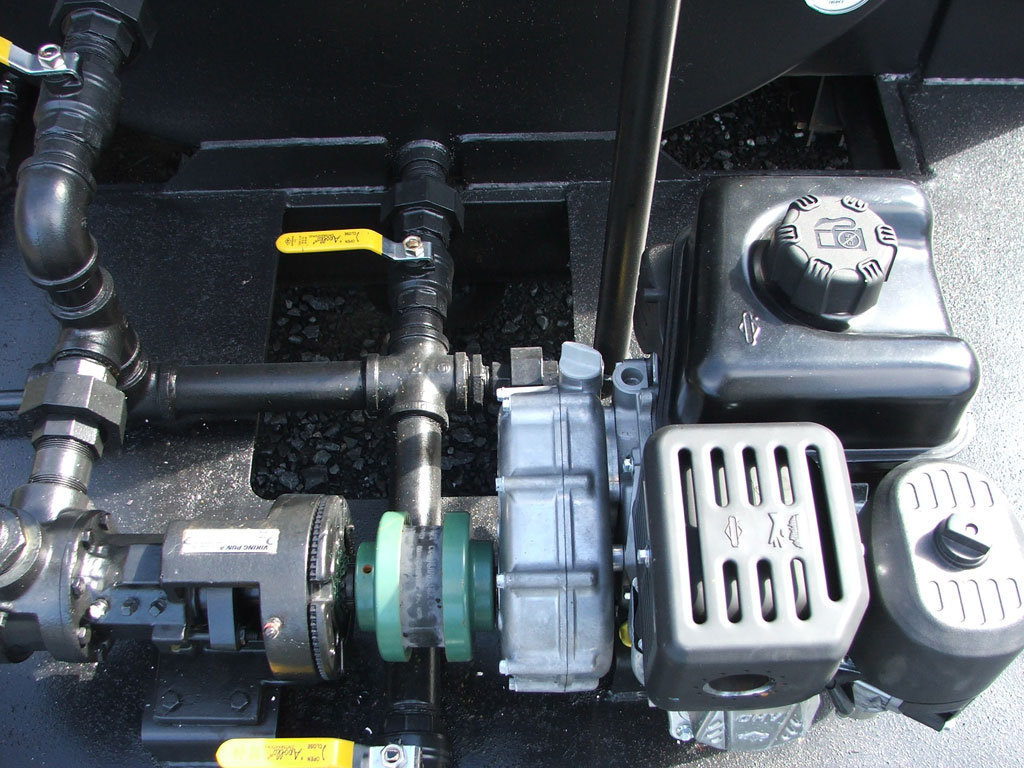

    20 GPM Viking internal gear positive displacement pump with 112-inch ports, dual relief valves allow continuous circulation, 2-inch quick connect for tank fill
  • Heating System

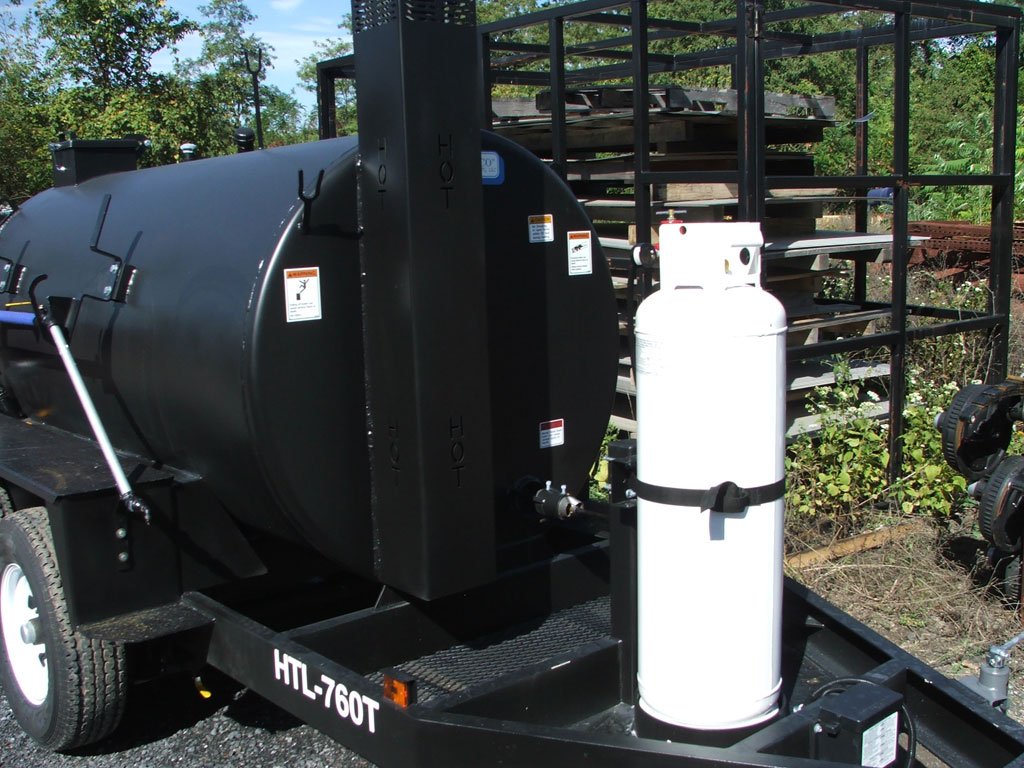

    "Hot Box" heated by 400,000 BTU torch, with 50/100-lb. propane tank holder with locking strap, regulator, and pressure gauge. 40-minute heating time!
  • Hose & Hand Wand

    30 feet of 12-inch hose and a 5-foot insulated, ergonomical hand wand.
  • Cleanup System

    Solvent tank flushes material out of pipe system into reclamation tank
  • Custom Options

    • Push-button ignitor

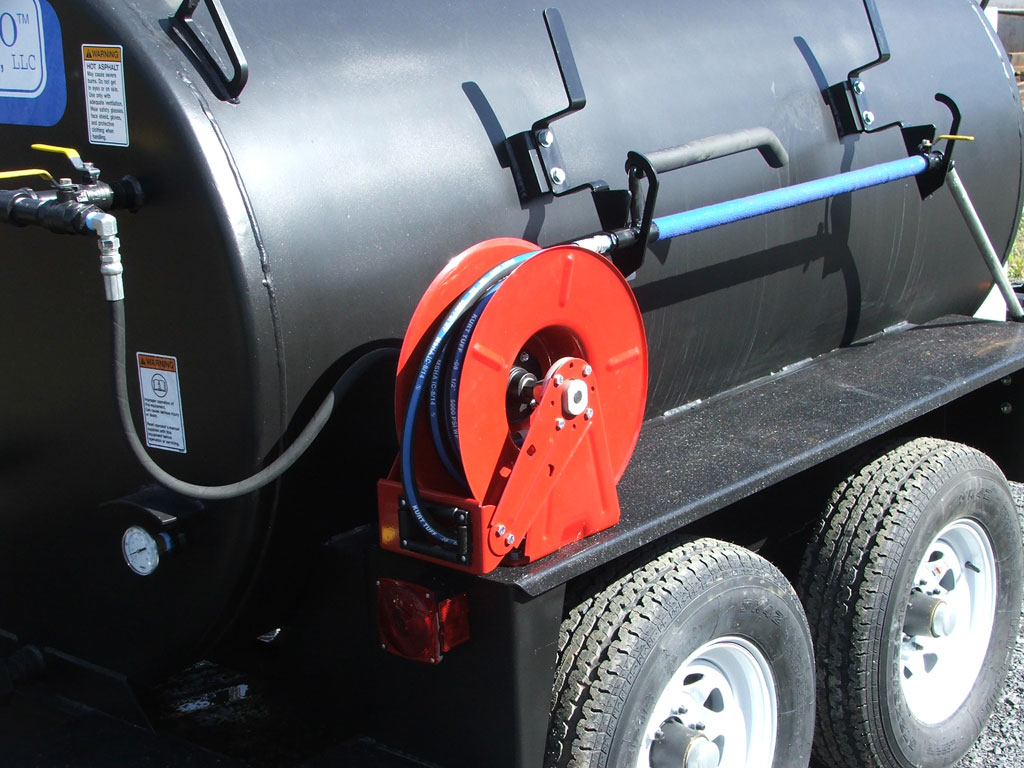

    • Hose reel (spring loaded/self-retracting)
    • 15-inch suction hose
    • Brush box
    • 100-lb. propane cylinder

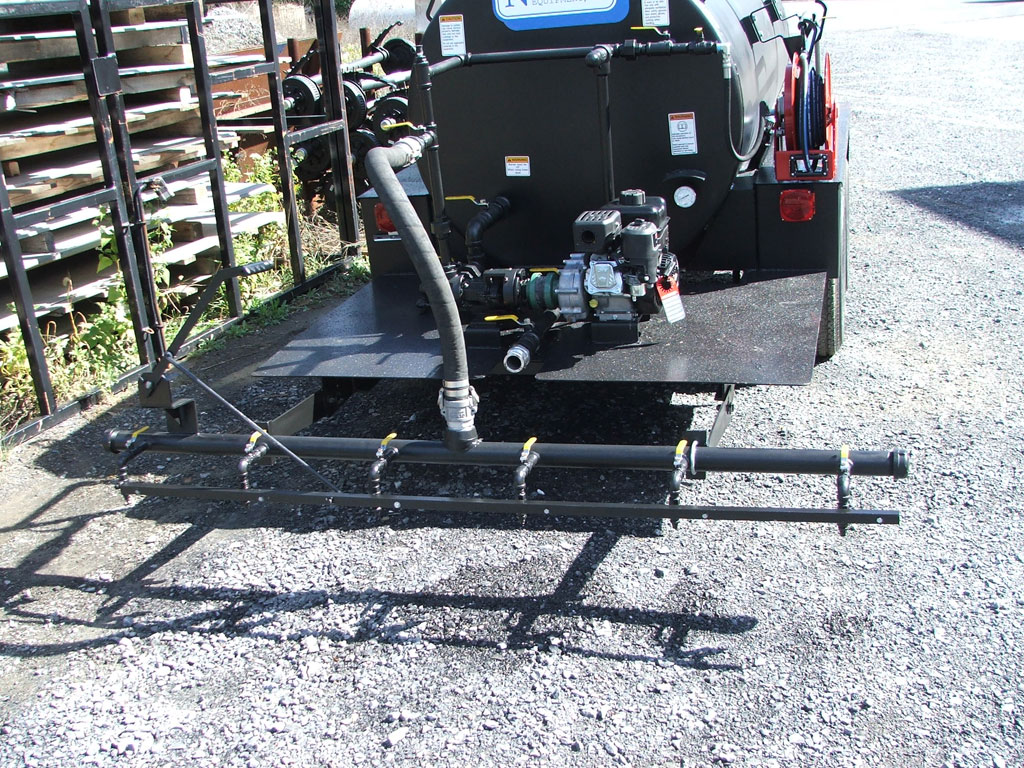

    • 6-nozzle spraybar
    • Operator seat

Hot Tack Machine

Operation, Maintenance and Parts (OMP) for Nealco® HTL-760 Hot Tack Trailer & Skid Systems

Engine

Manufactured by Briggs & Stratton® Corporation. Engine Model 950 Series.

Axles

Trailer systems only. Manufactured by Dexter Axle Company. Service manuals available on their website.
